Mastering Gradient Calculation in Geography: A Comprehensive Guide

Understanding Gradient in Geography: A Deep Dive

Geography, at its core, is about understanding the Earth’s surface and the processes that shape it. Among the many concepts geographers use, gradient stands out as a fundamental measure. Gradient, in its simplest form, refers to the steepness of a slope. It’s a crucial concept in various geographical analyses, from understanding river flow to assessing landslide risk. This comprehensive guide will walk you through the intricacies of gradient calculation in geography, providing you with the knowledge and tools to master this essential skill.

Why is Gradient Important in Geography?

Before we delve into the calculations, let’s understand why gradient is so important. The steepness of a slope influences numerous natural processes and human activities. Here are some key reasons:

• River Flow: The gradient of a riverbed directly affects the velocity of the water. Steeper gradients lead to faster flow, which can increase erosion and sediment transport.
• Landslides: Steep slopes are more prone to landslides, as gravity exerts a greater force on the materials. Understanding gradient helps in assessing landslide risk and implementing preventative measures.
• Soil Erosion: Gradient plays a significant role in soil erosion. Steeper slopes are more susceptible to erosion by water and wind.
• Vegetation Distribution: The steepness of a slope can influence the type of vegetation that can grow in a particular area. Steep slopes may have thinner soil and less water retention, limiting the types of plants that can survive.
• Human Activities: Gradient affects various human activities, such as road construction, agriculture, and urban development. Building on steep slopes can be challenging and costly, requiring specialized engineering techniques.

The Basics of Gradient Calculation

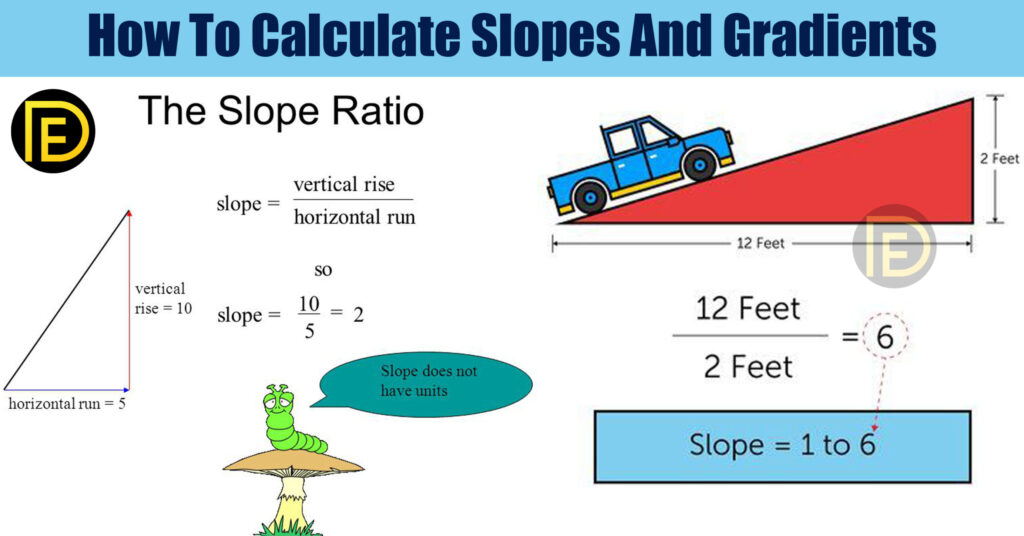

Gradient is essentially a ratio that compares the vertical change (rise) to the horizontal change (run). It’s often expressed as a fraction, a decimal, a percentage, or an angle. Let’s break down the key components:

• Rise: The vertical difference in elevation between two points. This is typically measured in meters or feet.
• Run: The horizontal distance between the same two points. This is also measured in meters or feet, using the same unit as the rise.

The formula for calculating gradient is:

Gradient = Rise / Run

Let’s illustrate this with a simple example. Imagine you’re hiking up a hill. You climb 100 meters in elevation (rise) over a horizontal distance of 500 meters (run). The gradient would be:

Gradient = 100 meters / 500 meters = 0.2

This means that for every meter you travel horizontally, you gain 0.2 meters in elevation.

Expressing Gradient in Different Forms

As mentioned earlier, gradient can be expressed in various forms. Here’s how to convert between them:

• Decimal to Percentage: Multiply the decimal by 100. In our example, 0.2 * 100 = 20%. This means the slope has a 20% gradient.
• Decimal to Angle: Use the arctangent function (tan^-1) on your calculator. Make sure your calculator is in degree mode. In our example, tan^-1(0.2) ≈ 11.31 degrees. This means the slope has an angle of approximately 11.31 degrees.
• Percentage to Decimal: Divide the percentage by 100. For example, a 35% gradient is equal to 0.35.
• Angle to Decimal: Use the tangent function (tan) on your calculator. For example, a 5-degree angle is equal to tan(5) ≈ 0.087.

Methods for Determining Rise and Run

To calculate gradient, you need to determine the rise and run. There are several methods for doing this, depending on the available data and the scale of the area you’re studying.

1. Using Topographic Maps

Topographic maps are essential tools for geographers. They use contour lines to represent elevation changes on the Earth’s surface. Contour lines connect points of equal elevation. The closer the contour lines are to each other, the steeper the slope.

Here’s how to use topographic maps to determine rise and run:

1. Identify two points of interest: Choose two points on the map between which you want to calculate the gradient.
2. Determine the elevation of each point: Find the contour lines that pass through or are closest to your points. The elevation of each contour line is usually indicated on the map. If a point falls between two contour lines, you can estimate its elevation by interpolating between the two values.
3. Calculate the rise: Subtract the elevation of the lower point from the elevation of the higher point. This gives you the vertical difference in elevation (rise).
4. Measure the horizontal distance (run): Use a ruler or a map measurer to determine the horizontal distance between the two points on the map. Remember to use the map scale to convert the measured distance on the map to the actual distance on the ground.
5. Calculate the gradient: Divide the rise by the run.

Example:

Let’s say you have a topographic map with a scale of 1:24,000. You want to calculate the gradient between two points, A and B. Point A is located on the 500-meter contour line, and point B is located on the 600-meter contour line. The horizontal distance between A and B on the map is 4 centimeters.

• Rise: 600 meters – 500 meters = 100 meters
• Run: 4 cm * 24,000 = 96,000 cm = 960 meters
• Gradient: 100 meters / 960 meters ≈ 0.104

The gradient between points A and B is approximately 0.104, or 10.4%.

2. Using GPS and Digital Elevation Models (DEMs)

With the advent of GPS technology and readily available Digital Elevation Models (DEMs), calculating gradient has become more efficient and accurate. GPS devices can provide precise location and elevation data, while DEMs are digital representations of the Earth’s surface elevation.

Here’s how to use GPS and DEMs to determine rise and run:

1. Collect GPS data: Use a GPS device to record the coordinates and elevation of two points of interest.
2. Obtain a DEM: Download a DEM for the area you’re studying. DEMs are available from various sources, such as the USGS (United States Geological Survey) and the SRTM (Shuttle Radar Topography Mission).
3. Extract elevation data from the DEM: Use GIS software (such as QGIS or ArcGIS) to extract the elevation values for the two points from the DEM. You can input the GPS coordinates into the GIS software to locate the corresponding cells in the DEM and retrieve their elevation values.
4. Calculate the rise: Subtract the elevation of the lower point from the elevation of the higher point.
5. Calculate the run: Use the GPS coordinates to calculate the horizontal distance between the two points. You can use the Haversine formula or a GIS tool to calculate the distance between two points given their latitude and longitude.
6. Calculate the gradient: Divide the rise by the run.

Example:

You use a GPS device to record the following data:

• Point A: Latitude = 34.0522° N, Longitude = 118.2437° W, Elevation = 300 meters
• Point B: Latitude = 34.0530° N, Longitude = 118.2450° W, Elevation = 350 meters

You use a GIS tool to calculate the horizontal distance between A and B, which is approximately 150 meters.

• Rise: 350 meters – 300 meters = 50 meters
• Run: 150 meters
• Gradient: 50 meters / 150 meters ≈ 0.333

The gradient between points A and B is approximately 0.333, or 33.3%.

3. Using Field Measurements

In some cases, you may need to determine the gradient directly in the field. This is particularly useful for small-scale studies or when topographic maps or DEMs are not available. Several tools can be used for field measurements, including:

• Clinometer: A clinometer is a simple instrument used to measure angles of slope. You can use a clinometer to measure the angle of inclination between two points and then use trigonometry to calculate the rise and run.
• Level and Measuring Tape: You can use a level to ensure a horizontal line and a measuring tape to measure the horizontal distance. Then, you can measure the vertical distance from the horizontal line to the ground to determine the rise.
• Total Station: A total station is a surveying instrument that combines an electronic distance meter (EDM) and a theodolite. It can measure both horizontal and vertical angles, as well as distances, with high precision. Total stations are commonly used in surveying and construction projects.

Example using a Clinometer:

You use a clinometer to measure the angle of inclination between two points. The clinometer reads 15 degrees.

You measure the horizontal distance (run) between the two points using a measuring tape. The distance is 20 meters.

To calculate the rise, you can use the tangent function:

tan(angle) = Rise / Run

Rise = tan(angle) * Run

Rise = tan(15°) * 20 meters ≈ 5.36 meters

Gradient = 5.36 meters / 20 meters ≈ 0.268

The gradient is approximately 0.268, or 26.8%.

Factors Affecting Gradient Calculation Accuracy

Several factors can affect the accuracy of gradient calculations. It’s important to be aware of these factors and take steps to minimize their impact.

• Map Scale: The scale of the topographic map affects the accuracy of the measurements. Larger-scale maps (e.g., 1:24,000) provide more detail and allow for more precise measurements than smaller-scale maps (e.g., 1:100,000).
• Contour Interval: The contour interval is the vertical distance between adjacent contour lines. Smaller contour intervals provide more detailed information about the terrain and allow for more accurate gradient calculations.
• DEM Resolution: The resolution of a DEM refers to the size of the grid cells. Higher-resolution DEMs (e.g., 1-meter resolution) provide more detailed elevation data than lower-resolution DEMs (e.g., 30-meter resolution).
• GPS Accuracy: The accuracy of GPS measurements can be affected by various factors, such as atmospheric conditions, satellite geometry, and signal obstructions. Differential GPS (DGPS) and Real-Time Kinematic (RTK) GPS techniques can improve the accuracy of GPS measurements.
• Measurement Errors: Human errors in measuring distances or reading elevations can also affect the accuracy of gradient calculations. It’s important to take careful measurements and double-check your work.

Applications of Gradient in Geography

Gradient is a fundamental concept in geography with a wide range of applications. Here are some examples:

• Hydrology: Gradient is used to study river flow, drainage patterns, and floodplains. It helps in understanding how water moves across the landscape and how it shapes the Earth’s surface.
• Geomorphology: Gradient is used to analyze landforms, such as hills, mountains, and valleys. It helps in understanding the processes that create and modify these landforms, such as erosion, deposition, and tectonic activity.
• Slope Stability Analysis: Gradient is a key factor in assessing slope stability and landslide risk. Steep slopes are more prone to landslides, and understanding the gradient helps in identifying areas that are at risk.
• Soil Conservation: Gradient is used to develop soil conservation strategies. Steep slopes are more susceptible to soil erosion, and understanding the gradient helps in implementing measures to prevent erosion, such as terracing and contour plowing.
• Urban Planning: Gradient is considered in urban planning and development. Building on steep slopes can be challenging and costly, and understanding the gradient helps in designing infrastructure and buildings that are safe and sustainable.
• Transportation Engineering: Gradient is a critical factor in road and railway design. Steep gradients can make it difficult for vehicles to climb hills, and understanding the gradient helps in designing roads and railways that are efficient and safe.
• Ecological Studies: Gradient influences vegetation distribution and habitat suitability. Different plant species have different tolerance levels for steep slopes and varying soil conditions, impacting biodiversity.

Advanced Gradient Analysis Techniques

Beyond basic gradient calculation, there are more advanced techniques used in geographic analysis that build upon the fundamental concept of slope.

Aspect

Aspect refers to the direction a slope faces. It is typically measured in degrees from north (0 to 360 degrees). Aspect is closely related to gradient and can significantly influence microclimate, soil moisture, and vegetation patterns. South-facing slopes in the Northern Hemisphere, for example, receive more direct sunlight and tend to be warmer and drier than north-facing slopes.

Curvature

Curvature describes the rate of change of slope. There are different types of curvature, including:

• Profile Curvature: The curvature of a surface in the direction of the maximum slope. It affects the acceleration and deceleration of flow across the surface.
• Plan Curvature: The curvature of a contour line. It affects the convergence and divergence of flow across the surface.

Curvature is used in various applications, such as soil erosion modeling, landslide susceptibility mapping, and hydrological analysis.

Terrain Ruggedness Index (TRI)

The Terrain Ruggedness Index (TRI) quantifies the amount of elevation difference between adjacent cells in a DEM. It is calculated by summing the squared elevation differences between a cell and its eight surrounding neighbors and then taking the square root of the sum. TRI is used to measure the overall roughness or irregularity of the terrain.

Slope Length (LS Factor)

The Slope Length (LS) factor is used in soil erosion models to account for the combined effects of slope length and slope steepness on soil erosion. It represents the ratio of soil loss from a given slope length and steepness to the soil loss from a standard unit plot.

Software and Tools for Gradient Analysis

Several software and tools are available for gradient analysis, including:

• GIS Software: GIS software, such as QGIS and ArcGIS, provides a wide range of tools for analyzing spatial data, including DEMs. These tools can be used to calculate gradient, aspect, curvature, and other terrain attributes.
• Remote Sensing Software: Remote sensing software, such as ENVI and ERDAS IMAGINE, can be used to process and analyze remotely sensed data, such as satellite imagery and aerial photography. These tools can be used to create DEMs and extract terrain information.
• Programming Languages: Programming languages, such as Python and R, can be used to develop custom scripts and algorithms for gradient analysis. These languages provide a flexible and powerful way to analyze spatial data.
• Online Tools: Several online tools are available for gradient calculation, such as online topographic map viewers and DEM analysis tools. These tools can be useful for quick and simple gradient calculations.

Conclusion

Calculating gradient is a fundamental skill in geography with numerous applications. By understanding the principles of gradient calculation and the various methods for determining rise and run, you can gain valuable insights into the Earth’s surface and the processes that shape it. Whether you’re using topographic maps, GPS data, DEMs, or field measurements, mastering gradient calculation will enhance your understanding of geography and your ability to solve real-world problems.

From assessing landslide risks to understanding river dynamics, the ability to quantify slope is essential for any geographer or environmental scientist. So, grab your maps, fire up your GIS software, and start exploring the slopes of the world!
